Traction battery kit 48V 625Ah
2.915,00€
3.527,15€ IVA inc.
Kit of traction elements + screws and accessories, for the complete assembly of battery for electric forklifts , scrubbers, lifting platforms, pallet trucks, etc..
For traction battery 48v 625ah:
24 TRACTION ELEMENTS 5 EPZS 625 AH
When purchasing the traction elements kit, you can mount the battery in the same metal box that you have in the machine, provided that the metal box is in good condition. The traction battery kit can be used for electric pallet trucks and forklifts of all brands such as Linde, Toyota, Jhungheinrich, Still, Yale, Mic … Sometimes the urgent need to operate the electric pallet truck means that the assembly of the electric forklift battery must be done in a short period of time. In these cases, our customers have the forklift battery kits in 24/48 hours, which allows them to assemble a new battery in a very short time.
Can't find the battery you are looking for? Our technical team helps you
Description
VOLTEM’s 48V 625Ah Traction Battery Kit is composed of top quality DIN 5Pzs625 manufacturing elements, which offer superior performance and reliability thanks to its robust construction based on the open tubular lead technology cast under pressure (PzS).
The negative plates have a flat configuration with pasted oxide and the separator is of the microporous type. The container and the lid of the element are hermetically welded and are highly resistant to shocks and the most extreme temperatures.
The terminals are specially designed to ensure that the elements are completely watertight, they are also connected through insulated flexible cables. Its screwed connections facilitate the assembly and replacement of the elements.
The 48V 625Ah Traction Battery Kit comes equipped with tilt-lock caps and electrolyte level indicator, which facilitates the escape of gases produced during charging and protects the battery from electrolyte spills.
48V TRACTION BATTERY KIT ASSEMBLY VIDEO
LIST OF BATTERY KIT ELEMENTS
| Units | Description |
| 23 | Insulating Flexible Connector |
| 2 | Bolted or welded battery protector |
| 1 | Identification label and characteristics |
| 1 | Documentation kit |
| 24 | Medium plug for DIN elements |
| 46 | Screws M10 x 18mm Black |
| 2 | Terminal screws Positive and Negative |

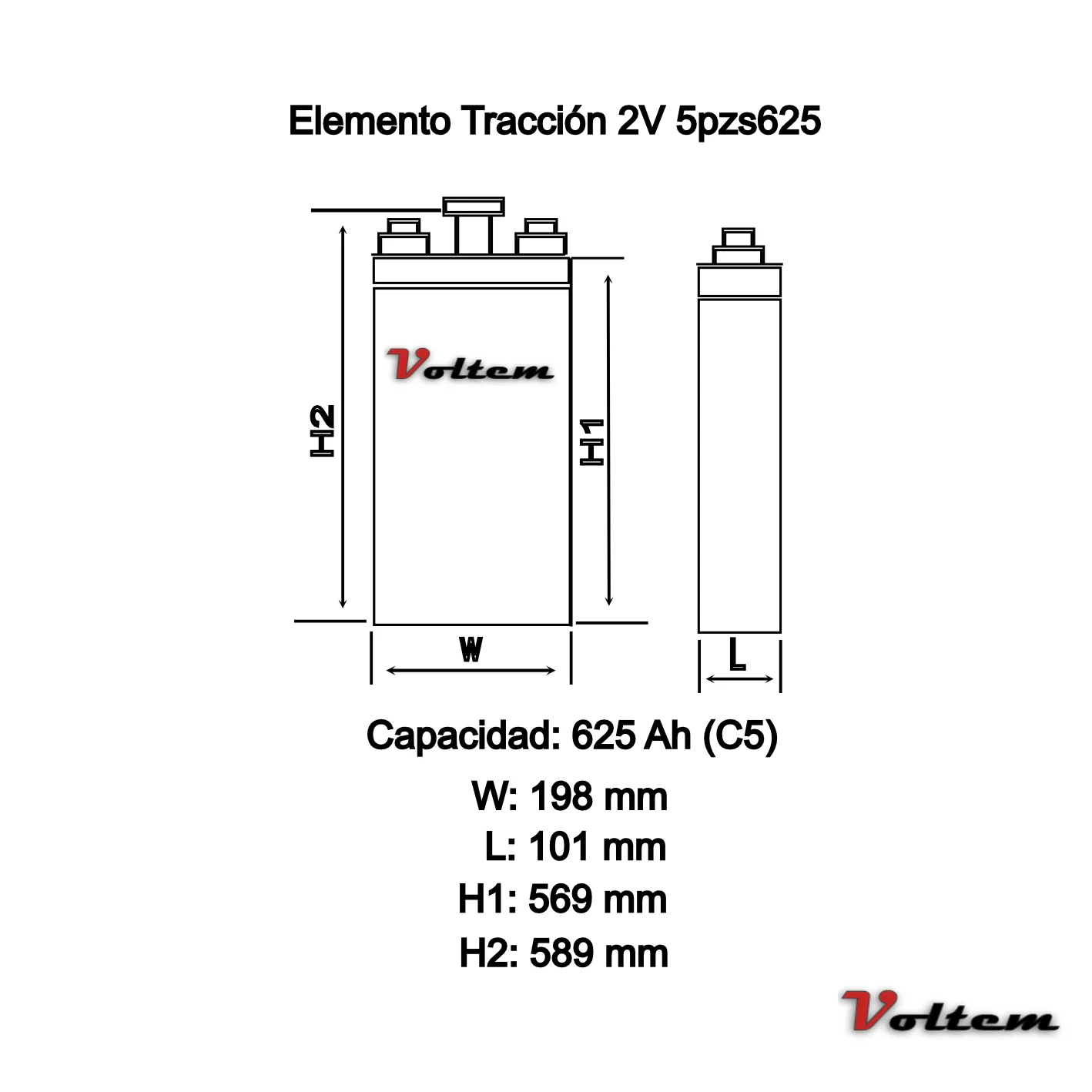

| 24 | PZS element – 5 plates, 2V 625 Ah |
TECHNICAL DATA SHEET TRACTION BATTERY KIT 48V 625AH
| Voltage | 48v |
| Capacity C5 | 625 Ah |
| Type Element | 5PZS-625 |
| Weight | 785 Kg |
| Warranty | 2 years |
 |
CUSTOM MANUFACTURING
We use the most advanced technology for the manufacture of traction batteries. Our database of forklifts and pallet trucks allows us to design and manufacture the necessary battery for any make and model of machine.
WE COLLECT YOUR USED BATTERY
Reducing the purchase cost is always an advantage and Rebatex allows us to make discounts of up to 15% by collecting your used batteries. With this method, in addition to obtaining significant savings, we will all be more respectful of the environment.
DELIVERED READY TO INSTALL
The assembly of the battery by the customer is simple because we send the battery completely assembled, you only have to insert it into the machine and connect the power connector.
CONNECTIONS AND MOUNTING
We have a large stock of traction elements, to speed up delivery times as much as possible. The assembly is carried out with screwed flexible connections and screws with PVC head, which allows a safety protection against electric shocks.
FORKLIFTS
Valid battery for the following electric forklifts and machines:
| – ATLET 160 DTF – BALKANCAR EV 698 – BT CBE 1.6 T – BT CBE 2.0 T – CATERPILLAR EP 13 T – CATERPILLAR EP 15 T – CATERPILLAR EP 16 K – CATERPILLAR EP 16 KT – CATERPILLAR EP 16 NT – CATERPILLAR F 35 – CATERPILLAR M 25 – CATERPILLAR NR 2000 – CESAB BLITZ 418 – CLARK CTM 16 X – CLARK EM 15 – CTC PLANET 416 – CTC PLANET PL 317 – DAEWOO B 16 X – DAEWOO B 18 T – 2 – DAEWOO B 18 T2 – EUROYEN FBT15 – FIAT O.M. EU 3 / 17.5 – FIAT O.M. XE 18 |
– HC EP CDP 20 FT – HELLI CPD 25 J – HYSTER E 1.50 XM – HYSTER J 1.50 XL – HYSTER J 1.60 XMT – HYSTER J 1.80 XMT – HYSTER J 2.00 XMT (Comp. 640) – HYUNDAI 18 B – 7 Ac – IP 191 – Jungheinrich Ameise EFG DF 15 – Jungheinrich Ameise EFG DF 18 – Jungheinrich Ameise LE 18 – KOMATSU FB 15 2R – KOMATSU FB 15 M2 – KOMATSU FB 16 – 1E – KOMATSU FB 18-12 – LINDE E 16 C SERIES 335 – LINDE E 16 Special MAERKS
– LINDE E 16 P |
– MIC LE 16 – MITSUBISHI BT 1570 – MITSUBISHI FB 16 KT – MITSUBISHI FB 16 KT (with rollers) – MITSUBISHI FB 18 K – MITSUBISHI FB 20 K – MITSUBISHI FB18NT – MITSUBISHI FBP 16 – MITSUBISHI FBS 15 – MITSUBISHI FBS 18
– MITSUBISHI RB 14/16/20 K |
– STILL RX 20 – 18 – STILL RX 20 – 20 – STILL RX 20 – 20 P – TECNA T 16 – TECNA T 18 – TECNA TRL 18 – TECNA TRL 20 – TECNA VTA10 – TOYOTA 2 FBE 15 – TOYOTA 2 FBE 18 – TOYOTA 5 FBE 15 – TOYOTA 5 FBE 15 – TOYOTA 7FBMF 15 – TOYOTA 8 FBEK 16 / 18 – Toyota 8FBEKT16 – Toyota 8FBEKT18 – TOYOTA FBE 15 – YALE ERC 16 AAF – YALE ERC 20 AAF – YALE ERP 16 ATT – YALE ERP 16-20 ATF / VF / VT – YALE ERP 20 ATF (SWB) |
